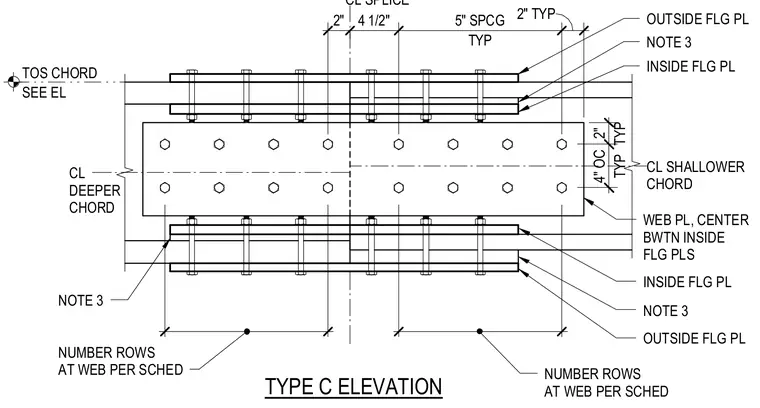

A Type C chord splice connection joins a deeper chord to a shallower chord. The assembly utilizes outside flange plates and inside flange plates along the top and bottom flanges, secured with through-bolts spaced at typical intervals of five inches. A web plate is centered between the inside flange plates with bolt rows configured per the engineering schedule. Dimensions indicate edge distances of two inches and a four-inch on-center vertical spacing at the web connection.
TYPE C ELEVATION CL SPLICE CL SHALLOWER CHORD OUTSIDE FLG PL WEB PL, CENTER BWTN INSIDE FLG PLS NOTE 3 OUTSIDE FLG PL INSIDE FLG PL NOTE 3 INSIDE FLG PL NUMBER ROWS AT WEB PER SCHED NUMBER ROWS AT WEB PER SCHED NOTE 3 2" 4 1/2" TYP 5" SPCG 2" TYP 15" 15" TYP 4" OC TYP 2" CL DEEPER CHORD SEE EL TOS CHORD
