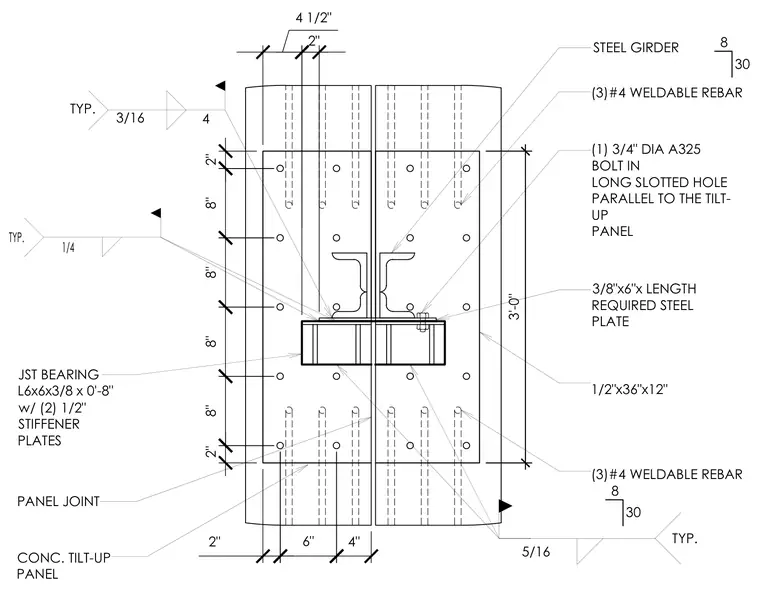

A steel girder bears on an L6x6x3/8 by zero-foot-eight-inch joist bearing angle equipped with two half-inch stiffener plates at a concrete tilt-up panel joint. The assembly connects adjacent concrete panels via a three-eighths-inch by six-inch steel plate embedded with a half-inch by thirty-six-inch by twelve-inch plate. Three number four weldable rebar anchors tie the plate assembly into each concrete tilt-up panel. A three-quarter-inch diameter A325 bolt is installed in a long slotted hole parallel to the tilt-up panel to accommodate movement. Fillet welds of five-sixteenths, quarter-inch, and three-sixteenths inch sizes secure the steel connection elements.
(1) 3/4" DIA A325 BOLT IN LONG SLOTTED HOLE PARALLEL TO THE TILT- UP PANEL CONC. TILT-UP PANEL JST BEARING L6x6x3/8 x 0'-8" w/ (2) 1/2" STIFFENER PLATES PANEL JOINT 3/8"x6"x LENGTH REQUIRED STEEL PLATE TYP. 5/16 TYP. 3/16 4 STEEL GIRDER TYP. 1/4 4 1/2" 2" 2" 8" 8" 8" 8" 2" 2" 6" 4" 1/2"x36"x12" (3)#4 WELDABLE REBAR (3)#4 WELDABLE REBAR 30 8 30 8 3'-0"
