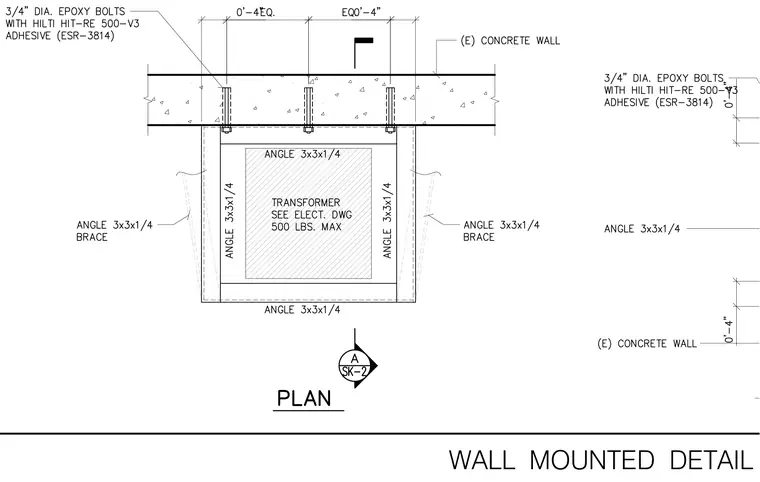

A transformer weighing up to five hundred pounds mounts to an existing concrete wall using a structural steel angle frame composed of 3x3x1/4 angles and 3x3x1/4 angle braces. The assembly hangs from the overhead concrete slab or wall face via three-quarter-inch diameter epoxy bolts installed with Hilti HIT-RE 500-V3 adhesive per ESR-3814. Fasteners are spaced with equal dimensions on four-inch increments.
