Structural · S-GJW84

Non-Bearing Wall Deflection Track at Top

Materials

Elements

About this detail

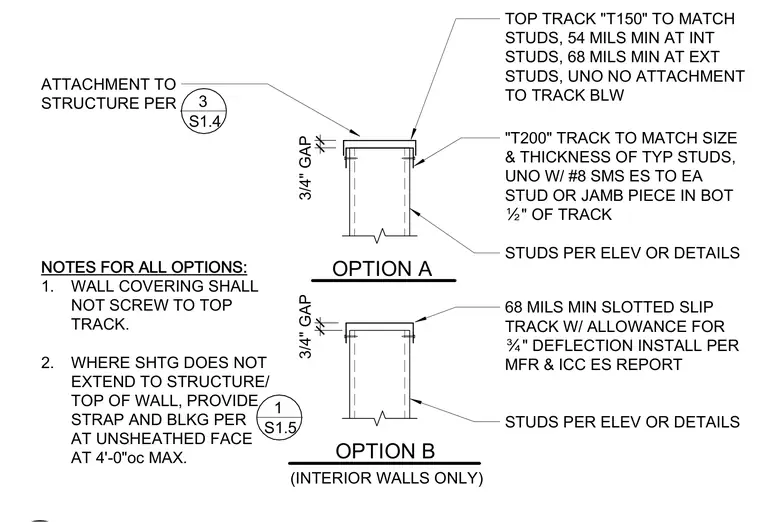

Two connection options for the top of a non-bearing cold-formed metal stud wall allowing for structural deflection. Option A features a T150 top track matching the studs with a fifty-four mils minimum thickness for interior studs and sixty-eight mils minimum for exterior studs, leaving the studs unattached to the track below and incorporating a three-quarter inch gap secured with number eight sheet metal screws each side to each stud in the bottom half-inch of the track. Option B, designated for interior walls only, utilizes a sixty-eight mils minimum slotted slip track with allowance for a three-quarter inch deflection installed per manufacturer and ICC ES report recommendations. Wall coverings must be left unscrewed to the top track, and where sheathing does not extend to the structure, a strap and blocking must be provided at unsheated faces at four feet on center maximum.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
