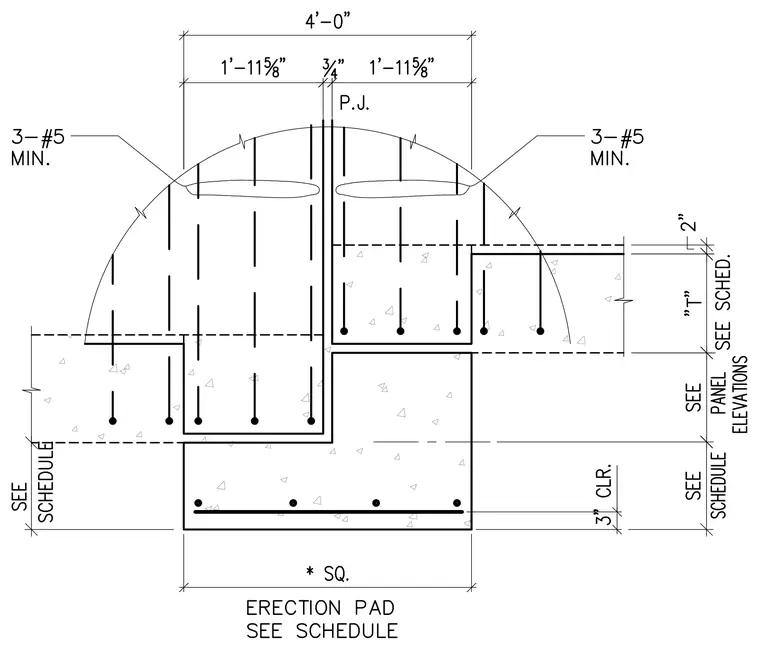

An erection pad assembly adjoins a panel joint. The concrete footing features reinforcement sized per schedule with three number five minimum bars. A three-quarter inch panel joint separates the adjacent precast panels. Dimensions indicate a pad width of four feet with specific offsets and three inches of clearance.
