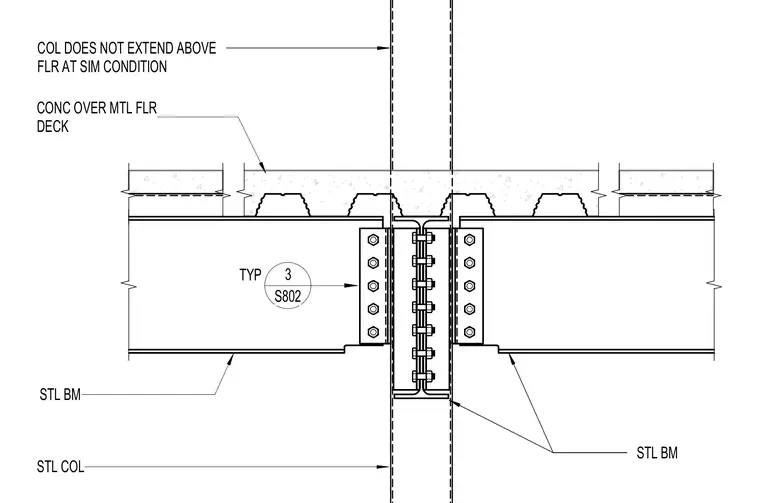

A structural steel column terminates below the floor level, where surrounding steel beams frame into it using bolted shear tab connections. Concrete fill over a metal floor deck surrounds the upper portion of the column flange and the framing beams at similar floor conditions.
STL COL STL BM COL DOES NOT EXTEND ABOVE FLR AT SIM CONDITION CONC OVER MTL FLR DECK STL BM TYP 3 S802
