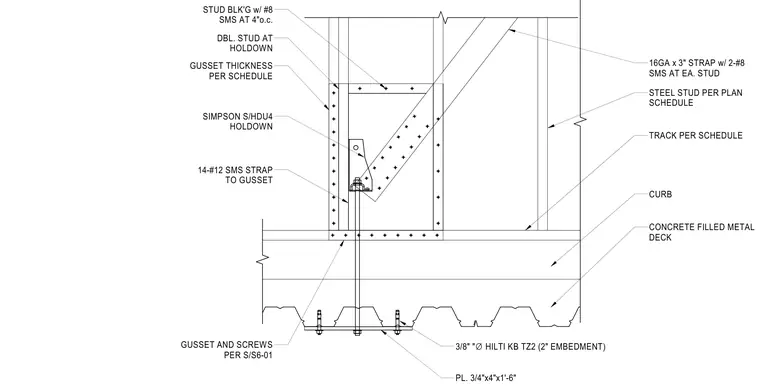

A braced wall holdown connection anchors a cold-formed steel stud wall to a concrete-filled metal deck. A Simpson S/HDU4 holdown is secured with fourteen number twelve self-tapping sheet metal screws to a steel gusset plate of schedule-specified thickness. The gusset assembly ties into double studs and framing tracks sized per plan, with stud blocking attached using number eight sheet metal screws at four inches on center. A long anchor rod passes through the holdown and extends down to a three-quarter-inch by four-inch by one-foot-six-inch steel plate fastened beneath the deck using three-eighths-inch diameter Hilti KB-TZ2 expansion anchors with a two-inch embedment. Sixteen-gauge by three-inch straps with two number eight sheet metal screws at each stud provide additional bracing connections along the wall framing.
STUD BLK'G w/ #8 SMS AT 4"o.c. DBL. STUD AT HOLDOWN GUSSET THICKNESS PER SCHEDULE SIMPSON S/HDU4 HOLDOWN 14-#12 SMS STRAP TO GUSSET GUSSET AND SCREWS PER S/S6-01 16GA x 3" STRAP w/ 2-#8 SMS AT EA. STUD STEEL STUD PER PLAN SCHEDULE TRACK PER SCHEDULE CURB CONCRETE FILLED METAL DECK 3/8" " ∅ HILTI KB TZ2 (2" EMBEDMENT) PL. 3/4"x4"x1'-6"
