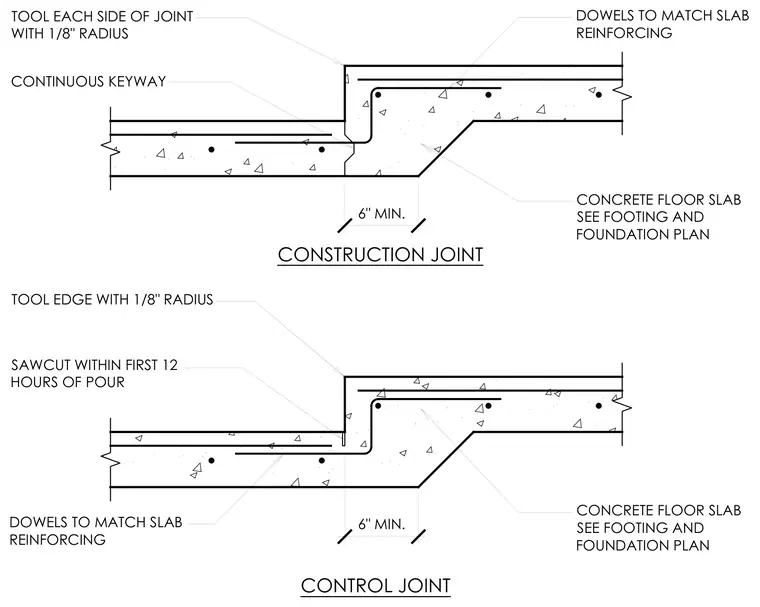

Concrete floor slabs feature a stepped depression connected by either a construction joint or a control joint with a minimum six-inch dimension. The construction joint incorporates a continuous keyway with a tooled edge of one-eighth inch radius on each side, supplemented by dowels matching the slab reinforcing. The control joint includes a sawcut performed within the first twelve hours of the pour alongside a tooled edge with a one-eighth inch radius and matching slab reinforcing dowels. Concrete floor slab thickness and reinforcement are sized per the footing and foundation plan.
SAWCUT WITHIN FIRST 12 HOURS OF POUR TOOL EDGE WITH 1/8" RADIUS CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONTINUOUS KEYWAY TOOL EACH SIDE OF JOINT WITH 1/8" RADIUS DOWELS TO MATCH SLAB REINFORCING DOWELS TO MATCH SLAB REINFORCING CONSTRUCTION JOINT CONTROL JOINT 6" MIN. 6" MIN.
