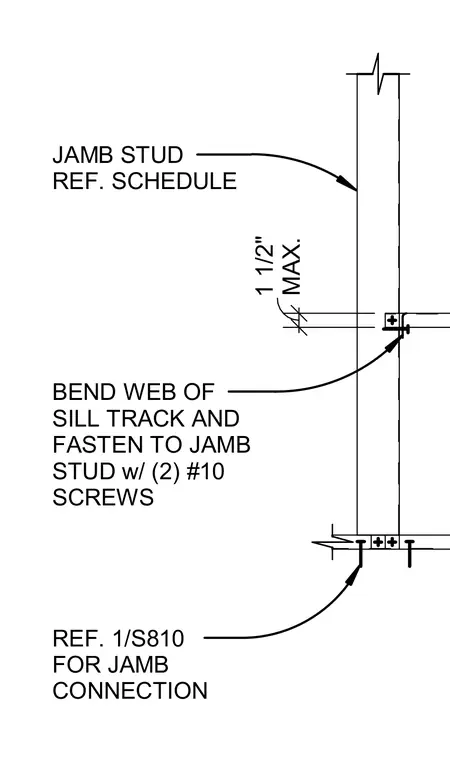

The sill track web is bent to bear against the jamb stud and secured with two number ten self-drilling screws. The jamb stud size is referenced per the structural schedule. A maximum one and one-half inch clearance is maintained at the connection. Additional jamb connection details are referenced on sheet S810.
MAX. 1 1/2" JAMB STUD REF. SCHEDULE BEND WEB OF SILL TRACK AND FASTEN TO JAMB STUD w/ (2) #10 SCREWS REF. 1/S810 FOR JAMB CONNECTION
