Structural · S-GJEP6

Coupling Beam Demolition Condition

Materials

Concrete

Elements

Columns Beams Floors / Slabs Anchors / Embeds

Connections

Embed Plate

About this detail

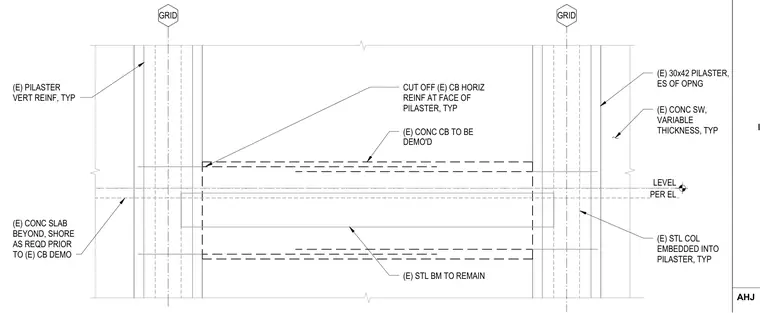

Existing concrete coupling beam scheduled for demolition between reinforced concrete shear walls with variable thickness. The existing steel column is embedded into the pilaster on each side of the opening, and the existing steel beam remains in place. Existing coupling beam horizontal reinforcement is cut off at the face of the pilaster, and vertical reinforcement continues within the pilaster. Existing concrete slab beyond requires shoring prior to coupling beam demolition.
