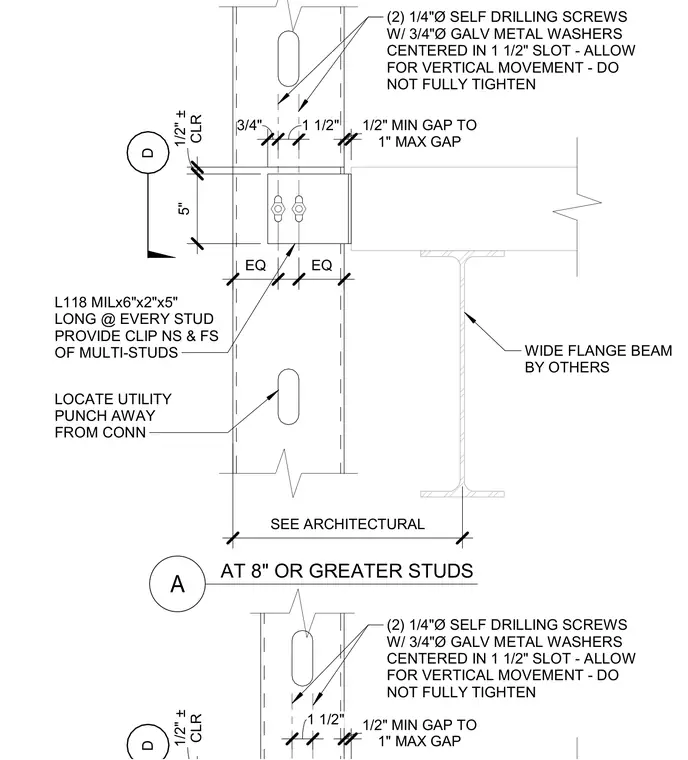

A structural steel wide flange beam framing connection located above a window head. The wide flange beam connects to cold-formed steel studs using an L18x6x2x5 inch long clip angle provided on both the near side and far side of multi-stud assemblies. Fastening consists of two quarter-inch diameter self-drilling screws equipped with three-quarter-inch diameter galvanized metal washers centered within one-and-a-half-inch vertical slots to permit vertical movement without fully tightening. A half-inch to one-inch maximum gap is maintained between components, and utility punches are located away from the connection point. The wide flange beam is provided by others and coordinated with architectural drawings.
D D 5" CLR 1/2" ± 3/4" 1 1/2" 1" MAX GAP 1/2" MIN GAP TO (2) 1/4"Ø SELF DRILLING SCREWS W/ 3/4"Ø GALV METAL WASHERS CENTERED IN 1 1/2" SLOT - ALLOW FOR VERTICAL MOVEMENT - DO NOT FULLY TIGHTEN WIDE FLANGE BEAM BY OTHERS LOCATE UTILITY PUNCH AWAY FROM CONN SEE ARCHITECTURAL L118 MILx6"x2"x5" LONG @ EVERY STUD PROVIDE CLIP NS & FS OF MULTI-STUDS A AT 8" OR GREATER STUDS CLR 1/2" ± 1 1/2" 1" MAX GAP 1/2" MIN GAP TO (2) 1/4"Ø SELF DRILLING SCREWS W/ 3/4"Ø GALV METAL WASHERS CENTERED IN 1 1/2" SLOT - ALLOW FOR VERTICAL MOVEMENT - DO NOT FULLY TIGHTEN EQ EQ
