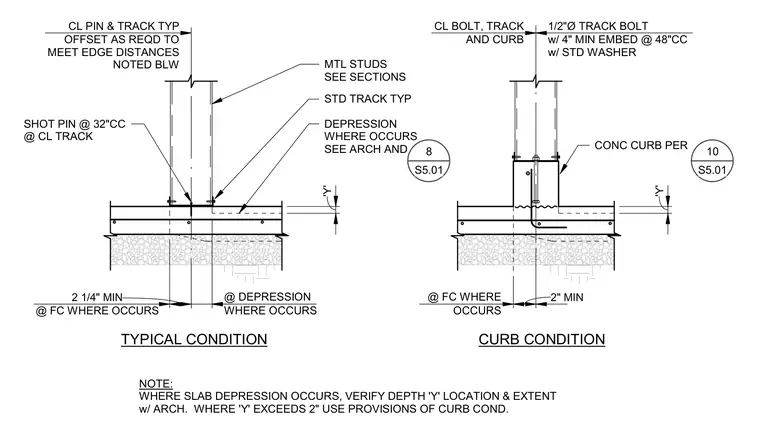

Metal studs connect to a standard track secured directly to the concrete slab via shot pins spaced at thirty-two inches on center. Where slab depressions occur, verify depth and location with the architectural drawings, and offset pins as required to maintain proper edge distances. When the depression depth exceeds two inches, apply the curb condition provisions utilizing a concrete curb with half-inch diameter track bolts featuring a four-inch minimum embedment and standard washers spaced at forty-eight inches on center.
MTL STUDS SEE SECTIONS STD TRACK TYP DEPRESSION WHERE OCCURS SEE ARCH AND SHOT PIN @ 32"CC @ CL TRACK NOTE: WHERE SLAB DEPRESSION OCCURS, VERIFY DEPTH 'Y' LOCATION & EXTENT w/ ARCH. WHERE 'Y' EXCEEDS 2" USE PROVISIONS OF CURB COND. TYPICAL CONDITION CURB CONDITION CONC CURB PER 'Y' @ FC WHERE OCCURS 2 1/4" MIN 'Y' 2" MIN CL PIN & TRACK TYP OFFSET AS REQD TO MEET EDGE DISTANCES NOTED BLW @ DEPRESSION WHERE OCCURS 1/2"Ø TRACK BOLT w/ 4" MIN EMBED @ 48"CC w/ STD WASHER CL BOLT, TRACK AND CURB @ FC WHERE OCCURS 8 S5.01 10 S5.01
