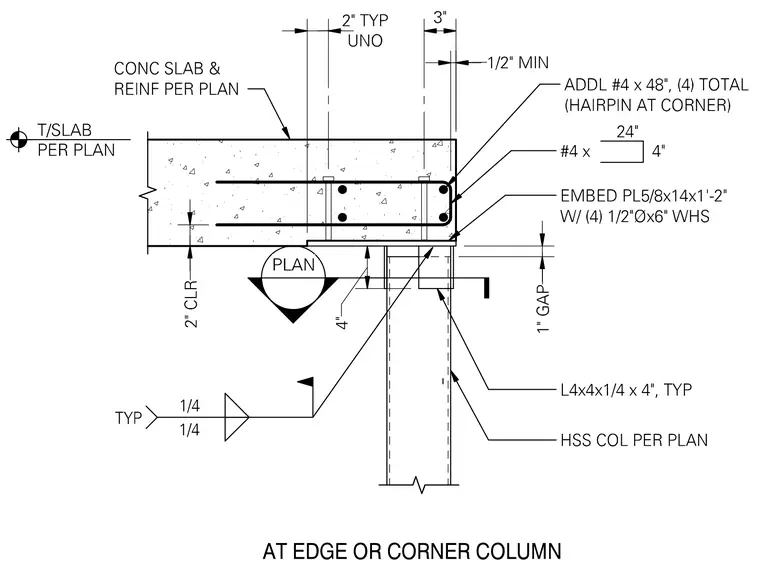

A hollow structural section column bears below a concrete slab through an embed plate measuring five-eighths by fourteen inches by one foot two inches, welded with four half-inch diameter by six-inch headed studs. An angle measuring four by four by one-quarter inch by four inches typical connects the column to the embed assembly, maintaining a one-inch gap. Additional reinforcement includes number four hairpin bars at the corner and reinforcing bars per plan within the concrete slab.
