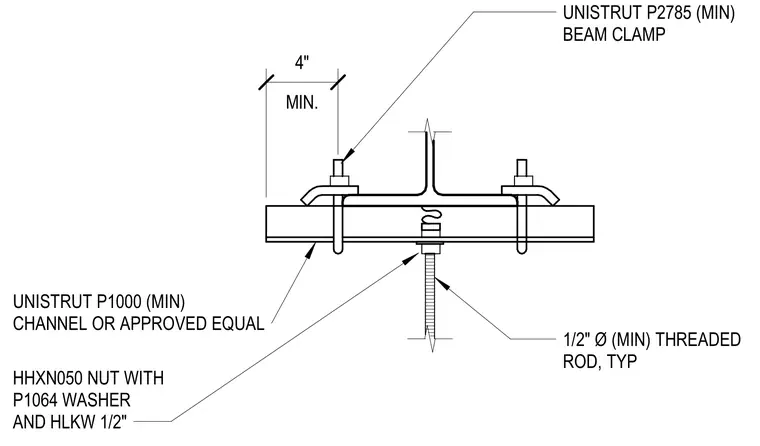

This assembly supports a threaded rod from a steel beam or joist using a pair of Unistrut P2785 beam clamps. The clamps secure a Unistrut P1000 channel across the bottom flange of the steel member. A minimum four-inch spacing is maintained for the clamp configuration. The threaded rod, with a minimum diameter of one-half inch, is suspended from the center of the channel using an HHXN050 nut, a P1064 washer, and a one-half inch HLKW lock washer.
CONNECTION TO CONCRETE CONNECTION TO STEEL BEAM OR JOIST UNISTRUT HRCN COUPLER NUT AND WASHER UNISTRUT P1000 (MIN) CHANNEL OR APPROVED EQUAL UNISTRUT P2785 (MIN) BEAM CLAMP 1/2" Ø (MIN) THREADED ROD, TYP UNISTRUT P2785 (MIN) BEAM CLAMP UNISTRUT P1000 (MIN) CHANNEL OR APPROVED EQUAL EXISTING SLAB ON METAL DECK STEEL JOIST OR BEAM MIN. 4" 3 5/8'' MIN
