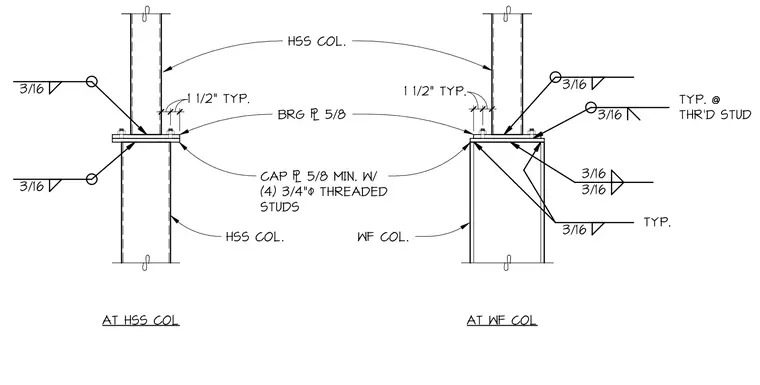

An upper hollow structural section column bears on a five-eighths inch bearing plate, secured with four three-quarter inch diameter threaded studs. The bearing plate rests on a minimum five-eighths inch cap plate welded to the supporting lower hollow structural section column or wide flange column. Three-sixteenths inch fillet welds are applied typically around the column connections.
1 1/2" 1 1/2" TYP. AT HSS COL AT WF COL CAP # 5/8 MIN. W/ (4) 3/4"2 THREADED STUDS BRG # 5/8 3/16 3/16 3/16 HSS COL. HSS COL. WF COL. 1 1/2" TYP. 1 1/2" 3/16 TYP. @ THR'D STUD 3/16 3/16 3/16 TYP.
