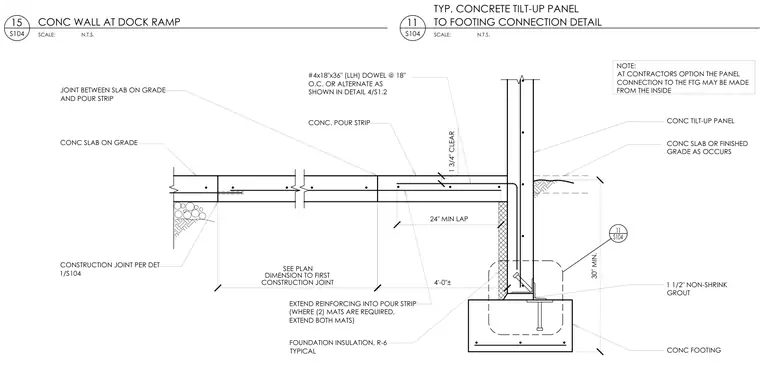

A concrete tilt-up wall panel bears on a concrete footing with one and one-half inches of non-shrink grout and is anchored with dowels. A concrete pour strip links the slab on grade to the wall panel, utilizing number four dowels spaced at eighteen inches on center or an alternate configuration. Reinforcing steel extends into the pour strip with a twenty-four-inch minimum lap, maintaining a one-and-three-quarter-inch clear dimension. Foundation insulation with an R-six rating is applied against the footing, and the contractor has the option to make the panel connection to the footing from the inside.
SCALE: 11 S104 TYP. CONCRETE TILT-UP PANEL TO FOOTING CONNECTION DETAIL N.T.S. JOINT BETWEEN SLAB ON GRADE AND POUR STRIP CONC SLAB ON GRADE CONSTRUCTION JOINT PER DET 1/S104 SEE PLAN DIMENSION TO FIRST CONSTRUCTION JOINT 1 3/4" CLEAR EXTEND REINFORCING INTO POUR STRIP (WHERE (2) MATS ARE REQUIRED, EXTEND BOTH MATS) 11 S104 CONC SLAB OR FINISHED GRADE AS OCCURS CONC. POUR STRIP #4x18"x36" (LLH) DOWEL @ 18" O.C. OR ALTERNATE AS SHOWN IN DETAIL 4/S1.2 NOTE: AT CONTRACTORS OPTION THE PANEL CONNECTION TO THE FTG MAY BE MADE FROM THE INSIDE CONC TILT-UP PANEL CONC FOOTING 30" MIN. 4'-0"± 1 1/2" NON-SHRINK GROUT 24" MIN LAP FOUNDATION INSULATION, R-6 TYPICAL SCALE: 15 S104 CONC WALL AT DOCK RAMP N.T.S.
