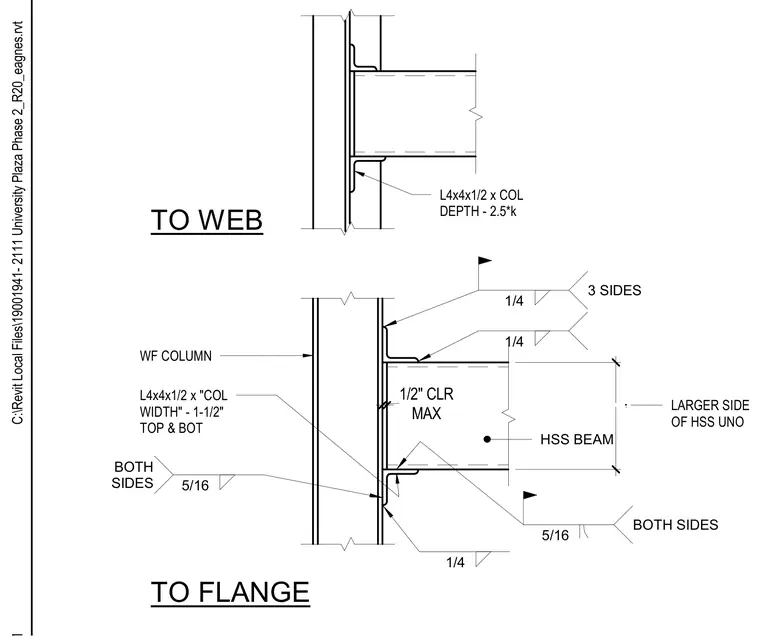

An HSS beam frames into a wide flange column using top and bottom structural angles dimensioned as L4x4x1/2. The angles connect to the column web or flange with five-sixteenth-inch fillet welds on both sides. A maximum clearance of one-half inch is maintained between the HSS beam end and the column face. The HSS beam connects to the angles with quarter-inch fillet welds applied to three sides on the larger side of the HSS unless noted otherwise.
L4x4x1/2 x "COL WIDTH" - 1-1/2" TOP & BOT WF COLUMN L4x4x1/2 x COL DEPTH - 2.5*k HSS BEAM TO FLANGE TO WEB LARGER SIDE OF HSS UNO . MAX 1/2" CLR 5/16 BOTH SIDES 5/16 BOTH SIDES 1/4 1/4 3 SIDES 1/4 C:\Revit Local Files\19001941- 2111 University Plaza Phase 2_R20_eagnes.rvt
