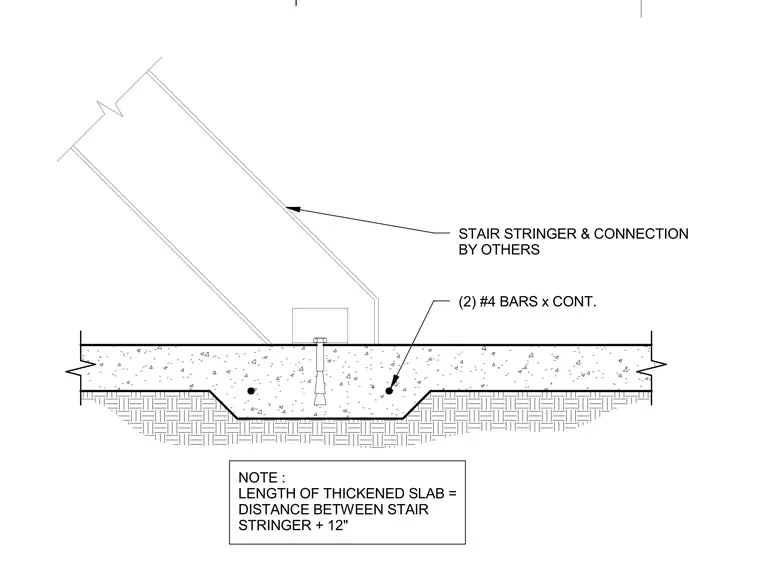

A thickened concrete slab supports a stair stringer. Two continuous number four reinforcing bars run longitudinally through the thickened slab section. The stair stringer and its connection assembly are provided by others. The total length of the thickened slab equals the distance between the stair stringer plus twelve inches.
STAIR STRINGER & CONNECTION BY OTHERS (2) #4 BARS x CONT. NOTE : LENGTH OF THICKENED SLAB = DISTANCE BETWEEN STAIR STRINGER + 12" 1
