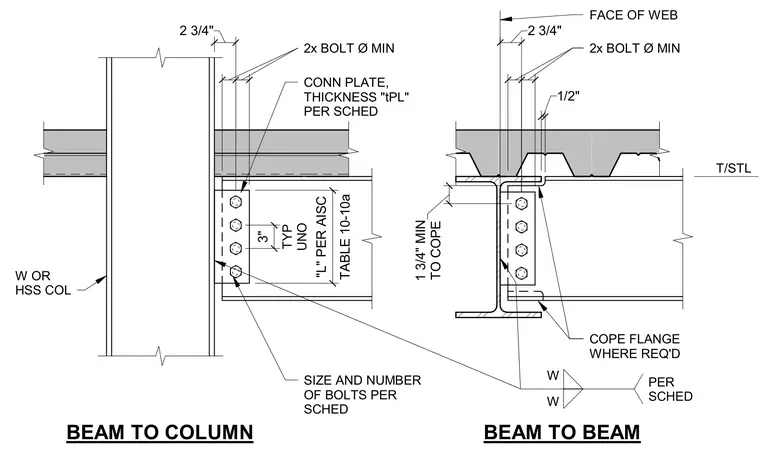

A wide-flange or hollow structural section column supports framing beams using a welded connection plate bolted to the beam web. The connection plate thickness, bolt diameter, and bolt quantity are determined per schedule. A standard three-inch vertical bolt spacing is maintained with two-and-three-quarter-inch edge clearances from the face of the web. Flanges are coped where required with a one-and-three-quarter-inch minimum dimension. Welds are sized per schedule.
T/STL 2x BOLT Ø MIN TYP UNO W W PER SCHED 2x BOLT Ø MIN FACE OF WEB 1/2" 3" 2 3/4" 2 3/4" TABLE 10-10a "L" PER AISC TO COPE 1 3/4" MIN BEAM TO COLUMN BEAM TO BEAM SIZE AND NUMBER OF BOLTS PER SCHED W OR HSS COL COPE FLANGE WHERE REQ'D CONN PLATE, THICKNESS "tPL" PER SCHED
