Structural · S-GHEKJ

Housekeeping Pad Detail

Materials

Concrete Metal (misc.)

Elements

Floors / Slabs Decks Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

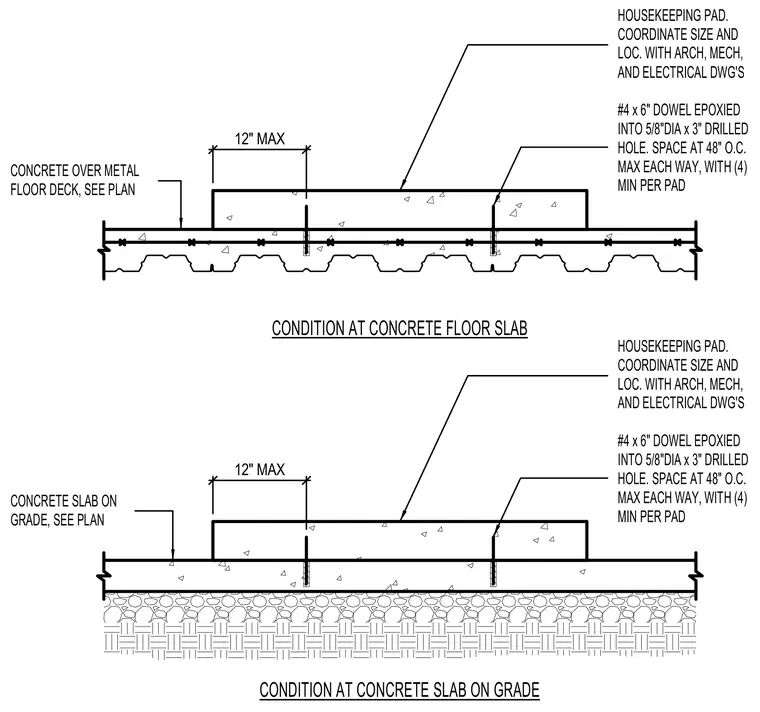

A concrete housekeeping pad bears on either a concrete slab on grade or a concrete topping over a metal floor deck, sized per plan and coordinated with architectural, mechanical, and electrical drawings. The pad is anchored using number four by six inch dowels epoxied into five-eighths inch diameter by three inch drilled holes, spaced at forty-eight inches on center maximum each way with a minimum of four dowels per pad. Reinforcing steel is placed within the pad with a twelve inch maximum dimension shown.
