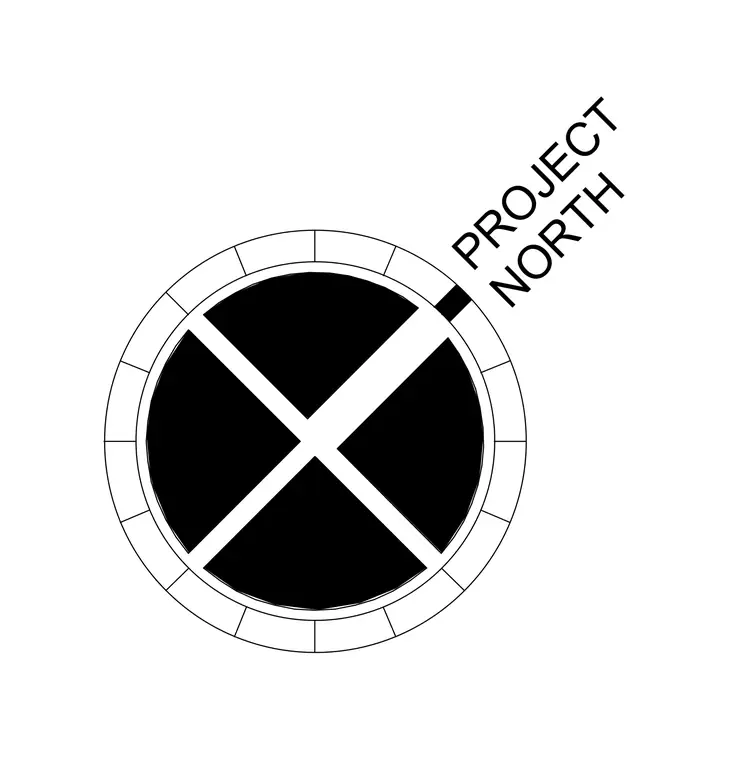

The drawing shows a circular project north arrow symbol with a segmented outer ring and a directional indicator. It is used on plans to establish drawing orientation relative to project north.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
