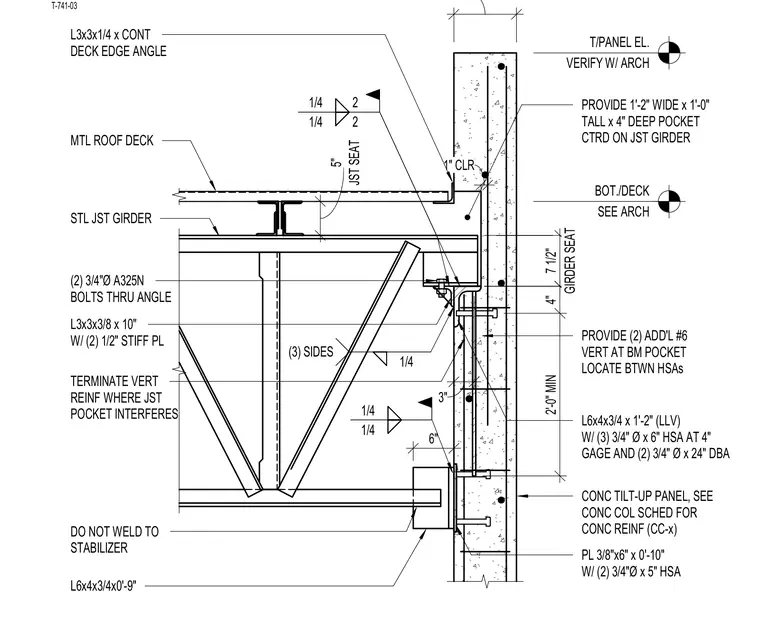

A steel joist girder bears into a pocket formed within a concrete tilt-up wall panel, utilizing an embedded L6x4x3/4 by one-foot-two-inch angle secured with three three-quarter-inch diameter by six-inch headed stud anchors and two three-quarter-inch diameter by twenty-four-inch deformed bar anchors. A continuous L3x3x1/4 deck edge angle supports the metal roof deck at the top of the wall with a one-inch clearance. Additional vertical reinforcing includes two extra number six bars located between the stud anchors at the beam pocket, while vertical reinforcement is terminated where the joist pocket interferes. A stiffened angle L3x3x3/8 by ten inches with two half-inch stiffener plates connects the assembly with quarter-inch welds on three sides. Below, an L6x4x3/4 by nine-inch angle bears against the panel and is left unwelded to the stabilizer, anchored by a three-eighths by six-inch by ten-inch plate with two three-quarter-inch diameter headed stud anchors.
T/PANEL EL. VERIFY W/ ARCH BOT./DECK SEE ARCH MTL ROOF DECK 4" 2'-0" MIN 3" 1" CLR L6x4x3/4 x 1'-2" (LLV) W/ (3) 3/4" Ø x 6" HSA AT 4" GAGE AND (2) 3/4" Ø x 24" DBA PROVIDE 1'-2" WIDE x 1'-0" TALL x 4" DEEP POCKET CTRD ON JST GIRDER PROVIDE (2) ADD'L #6 VERT AT BM POCKET LOCATE BTWN HSAs 1/4 (3) SIDES L3x3x3/8 x 10" W/ (2) 1/2" STIFF PL L3x3x1/4 x CONT DECK EDGE ANGLE JST SEAT 5" GIRDER SEAT 7 1/2" PL 3/8"x6" x 0'-10" W/ (2) 3/4"Ø x 5" HSA (2) 3/4"Ø A325N BOLTS THRU ANGLE STL JST GIRDER L6x4x3/4x0'-9" DO NOT WELD TO STABILIZER CONC TILT-UP PANEL, SEE CONC COL SCHED FOR CONC REINF (CC-x) TERMINATE VERT REINF WHERE JST POCKET INTERFERES 6" 1/4 1/4 2 2 1/4 1/4 T-741-03
