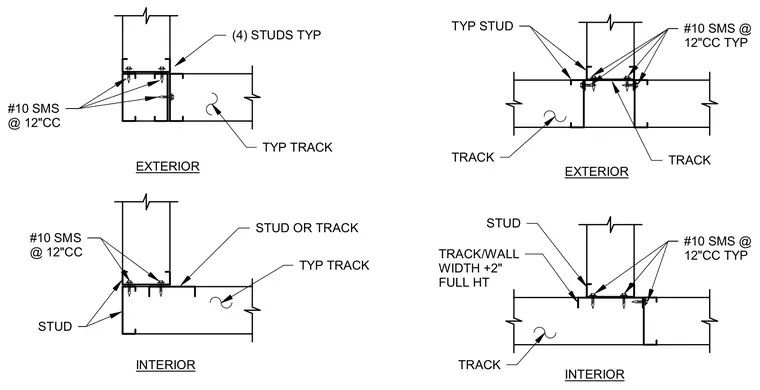

Cold-formed metal framing wall corners and intersections utilize multiple studs and tracks fastened with number ten sheet metal screws spaced at twelve inches on center. The assembly includes typical tracks and studs with exterior and interior orientations defined for each condition. Certain configurations incorporate a full height track sized to the wall width plus two inches.
EXTERIOR INTERIOR (4) STUDS TYP TYP TRACK STUD OR TRACK TYP TRACK #10 SMS @ 12"CC STUD #10 SMS @ 12"CC TRACK/WALL WIDTH +2" FULL HT TRACK STUD TRACK TRACK TYP STUD #10 SMS @ 12"CC TYP EXTERIOR INTERIOR #10 SMS @ 12"CC TYP
