Structural · S-GH5DT

Typical One-Way Slab

Elements

Floors / Slabs Reinforcing Roof / Floor Openings

Connections

About this detail

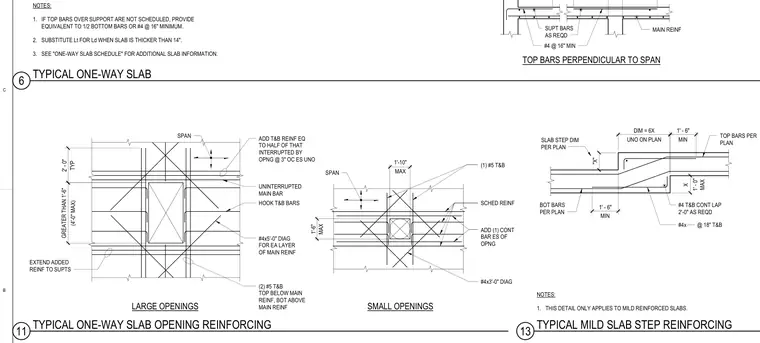

This structural detail provides standard reinforcement requirements for one-way concrete slabs, slab steps, and slab openings in mild reinforced construction. The details specify top and bottom continuous reinforcing bars, diagonal corner bars for large and small openings, and lap splice lengths. Specific callouts include number four bars at sixteen inches minimum for main reinforcement, number five top and bottom bars for opening headers, and specific diagonal bar lengths for each layer of main reinforcement. Notes outline requirements for un-scheduled top bars over supports and substitution of development lengths for slabs thicker than fourteen inches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
