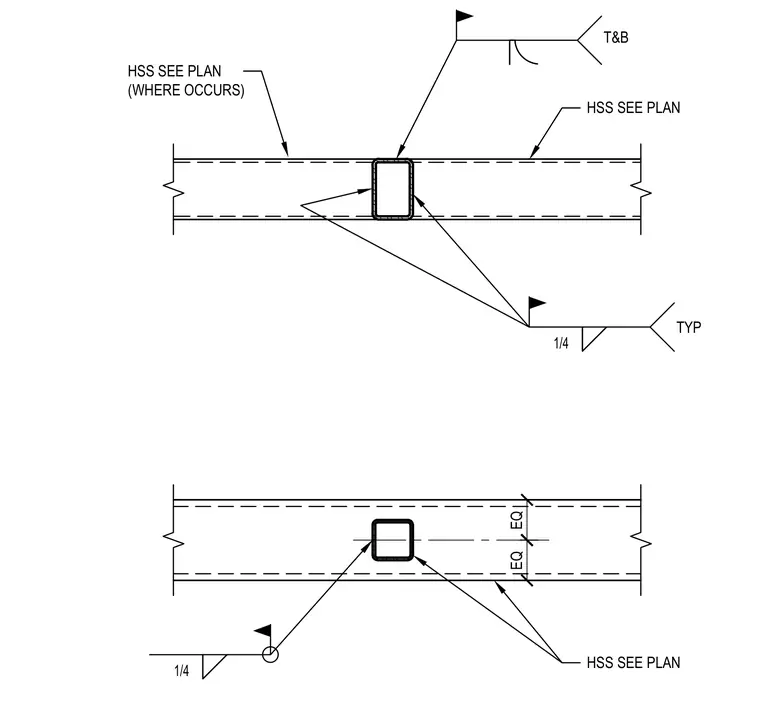

Hollow structural section members sized per plan connect with continuous quarter-inch fillet welds applied to the top and bottom. Field welding is indicated by flag symbols at the connection interfaces. Equal spacing dimensions govern the alignment of the hollow structural section members.
