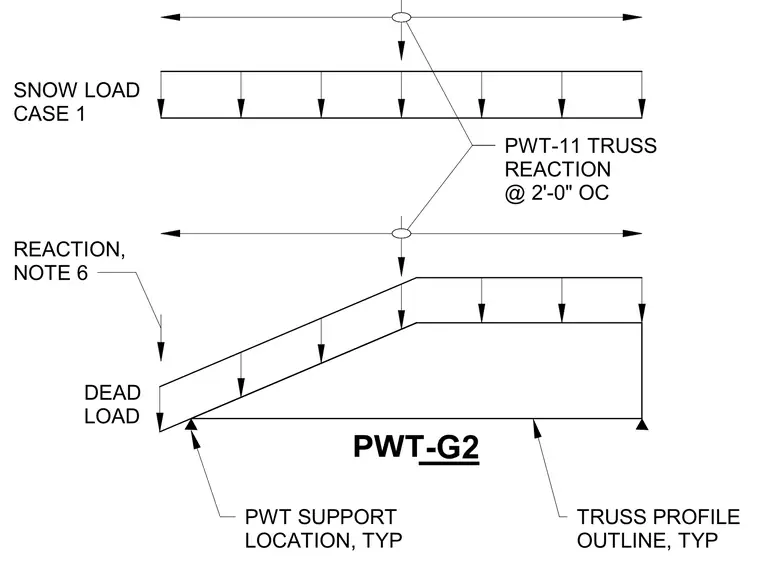

This diagram defines the structural loading conditions for a PWT-11 truss, including snow load case one and dead load distributions. The PWT-11 truss reaction is specified at two feet on center. The truss profile outline and typical support locations are indicated to establish the geometry for the reaction calculations referenced in note six.
