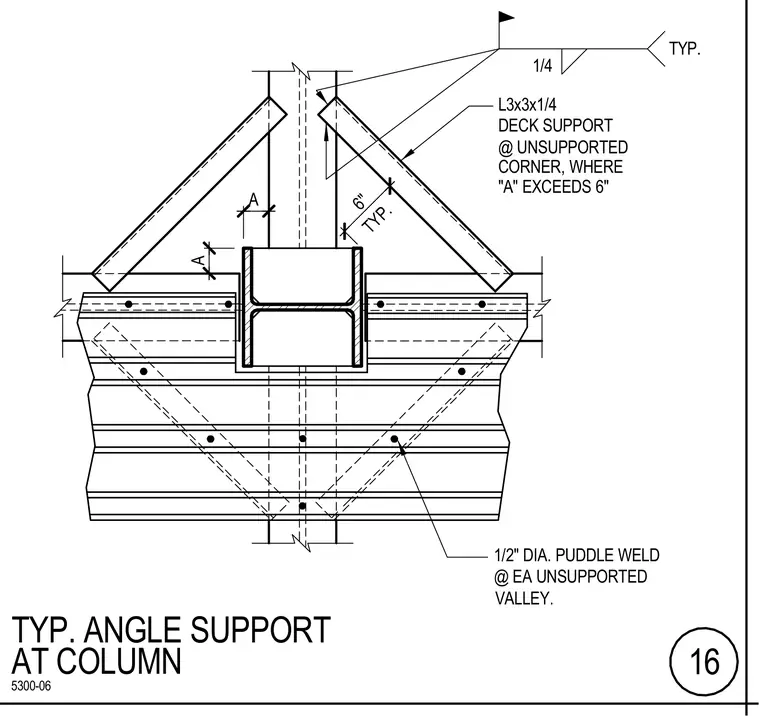

An L3x3x1/4 angle provides typical deck support at unsupported corners where dimension A exceeds six inches. A one-quarter-inch fillet weld secures the angle assembly typically. One-half-inch diameter puddle welds attach the metal deck at each unsupported valley.
5300-06 16 AT COLUMN TYP. ANGLE SUPPORT 1/2" DIA. PUDDLE WELD @ EA UNSUPPORTED VALLEY. TYP. 1/4 L3x3x1/4 DECK SUPPORT @ UNSUPPORTED "A" EXCEEDS 6" CORNER, WHERE 6" A A TYP.
