A three-inch hollow structural section post connects to a horizontal hollow structural section girt using paired structural steel angles. Two three-by-three by one-quarter inch angles secure the top of the post to the girt with quarter-inch fillet welds on three sides. Two six-by-four by three-eighths inch long-leg vertical angles secure the bottom of the post, extended to overlap a minimum of four inches when the post is eccentric from the girt. A three-quarter-inch diameter through-bolt passes through three-inch vertically slotted holes in the angle, finger tightened with the nut tack-welded to the bolt. Quarter-inch fillet welds with three-inch returns on both sides join the components.

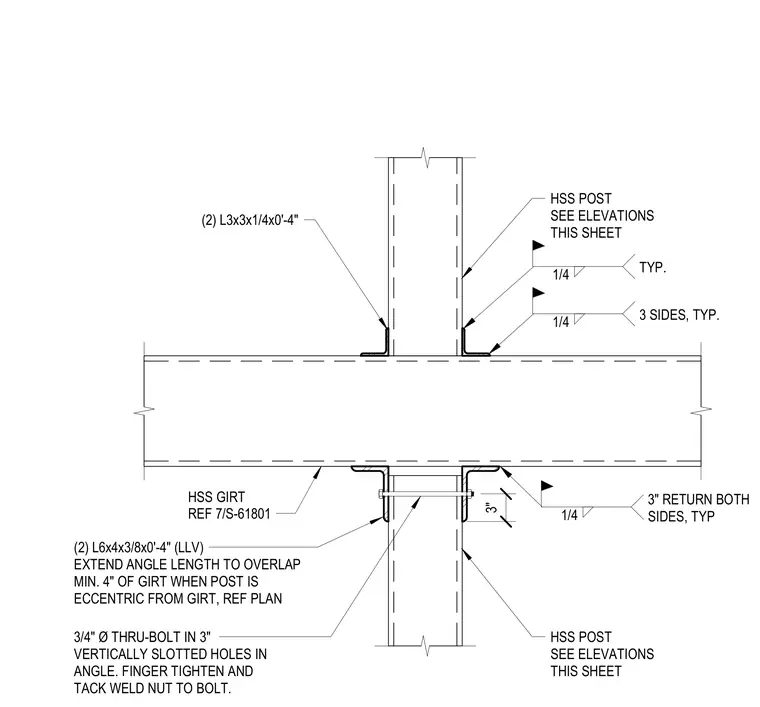

3" HSS POST SEE ELEVATIONS THIS SHEET 1/4 3" RETURN BOTH SIDES, TYP 3/4" Ø THRU-BOLT IN 3" VERTICALLY SLOTTED HOLES IN ANGLE. FINGER TIGHTEN AND TACK WELD NUT TO BOLT. (2) L6x4x3/8x0'-4" (LLV) EXTEND ANGLE LENGTH TO OVERLAP MIN. 4" OF GIRT WHEN POST IS ECCENTRIC FROM GIRT, REF PLAN 1/4 TYP. (2) L3x3x1/4x0'-4" HSS POST SEE ELEVATIONS THIS SHEET 1/4 3 SIDES, TYP. HSS GIRT REF 7/S-61801
