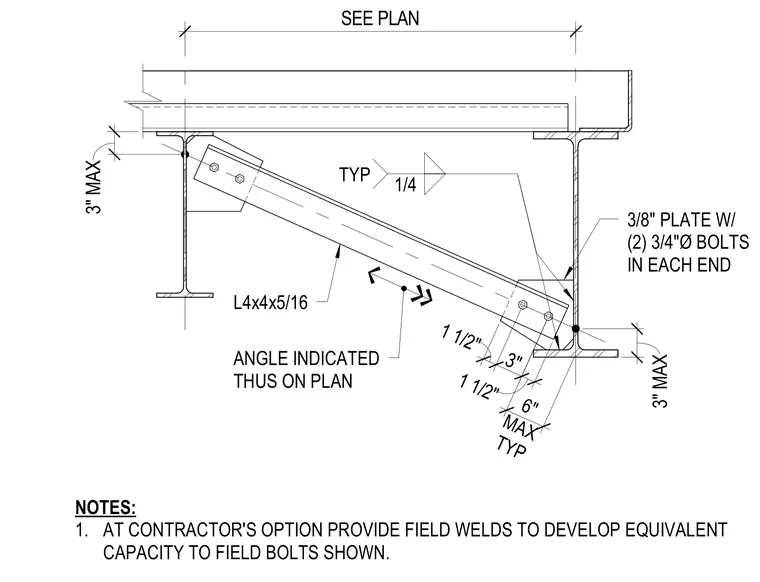

An L4x4x5/16 angle brace is connected at each end using three-eighths-inch gusset plates with two three-quarter-inch-diameter bolts. A one-quarter-inch fillet weld secures the plate connections where indicated. The contractor has the option to provide field welds developing equivalent capacity to the field bolts shown.
L4x4x5/16 ANGLE INDICATED THUS ON PLAN 3/8" PLATE W/ (2) 3/4"Ø BOLTS IN EACH END NOTES: 1. AT CONTRACTOR'S OPTION PROVIDE FIELD WELDS TO DEVELOP EQUIVALENT CAPACITY TO FIELD BOLTS SHOWN. SEE PLAN 1 1/2" 3" 1 1/2" 4 3 7 /12 8" 6" MAX TYP 3" MAX 3" MAX 1/4 TYP
