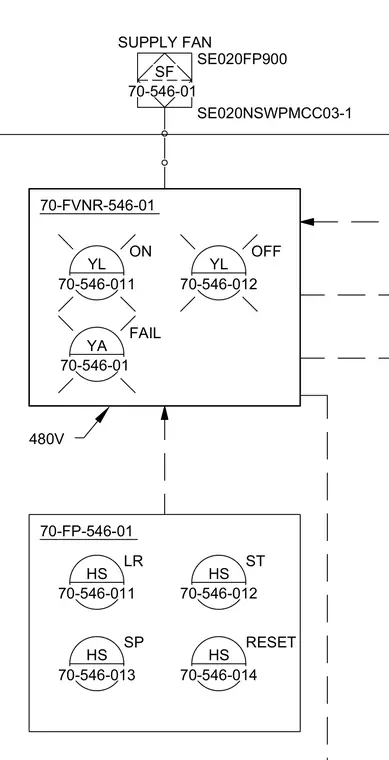

The supply fan SF SE020FP900 is powered by a 480V circuit fed through a motor control center connection SE020NSWPMCC03-1. A 70-FVNR-546-01 starter enclosure houses yellow ON and OFF indicator lights along with a fail status indicator. A separate control station 70-FP-546-01 provides hand-off-auto or local-remote selector switches and a reset button.
HS 70-546-011 LR HS 70-546-012 ST HS 70-546-013 SP HS 70-546-014 RESET )915 480V )3 SF SUPPLY FAN SE020NSWPMCC03-1 SE020FP900 YL 70-546-012 OFF YA FAIL YL 70-546-011 ON
