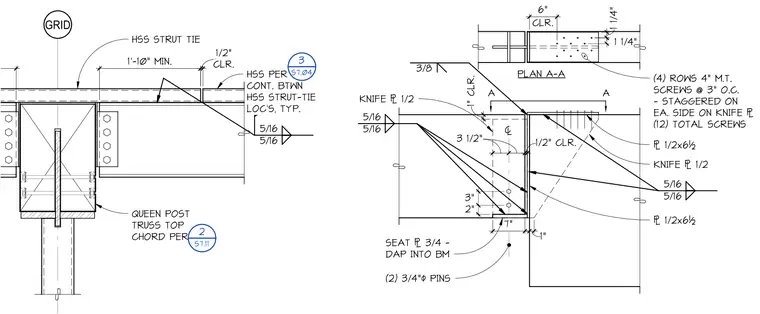

A glulam beam hinge connection features a queen post truss top chord tied with a hollow structural section strut, maintaining a one foot ten inch minimum clearance to the grid. The connection incorporates a half-inch knife plate secured with two three-quarter-inch diameter pins and a three-quarter-inch seat plate dapped into the timber beam. Additional stability is provided by half-inch by six-and-a-half-inch plates and four rows of mass-timber screws at three inches on center, staggered on each side of the knife plate for a total of twelve screws. Five-sixteenth-inch fillet welds are specified at structural steel interfaces with continuous hollow structural section strut ties located typically between locations.
GRID 1'-10" MIN. QUEEN POST TRUSS TOP CHORD PER HSS STRUT TIE 5/16 5/16 2 S7.11 CLR. 1/2" HSS PER CONT. BTWN HSS STRUT-TIE LOC'S, TYP. 3 S7.04 1" CLR. 3" 2" 3 1/2" 3 1/2" CLR. 6" 1 1/4" PLAN A-A A A 1 1/4" KNIFE & 1/2 (2) 3/4"$ PINS SEAT & 3/4 - DAP INTO BM & 1/2x6½ & 1/2x6½ (4) ROWS 4" M.T. SCREWS @ 3" O.C. - STAGGERED ON EA. SIDE ON KNIFE & (12) TOTAL SCREWS 5/16 5/16 5/16 5/16 7" / 1/2" CLR. 1" 3/8 KNIFE & 1/2
