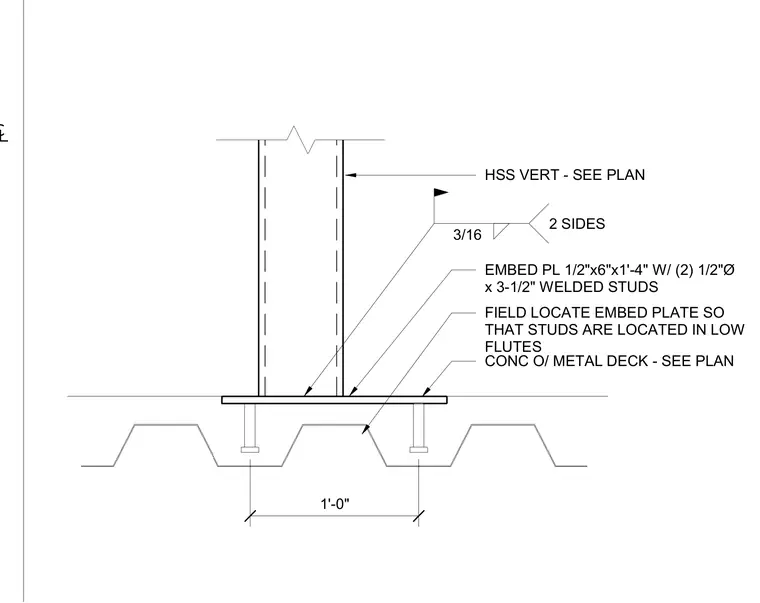

A vertical hollow structural section post is welded to a half-inch by six-inch by one-foot-four-inch embed plate with a three-sixteenths-inch fillet weld on two sides. The embed plate is anchored to a concrete over metal deck assembly using two half-inch diameter by three-and-a-half-inch welded studs field-located in the low flutes of the deck spaced one foot apart. The post size is sized per plan and bears on the concrete slab.
EMBED PL 1/2"x6"x1'-4" W/ (2) 1/2"Ø x 3-1/2" WELDED STUDS FIELD LOCATE EMBED PLATE SO THAT STUDS ARE LOCATED IN LOW FLUTES 3/16 2 SIDES HSS VERT - SEE PLAN CONC O/ METAL DECK - SEE PLAN 1'-0"
