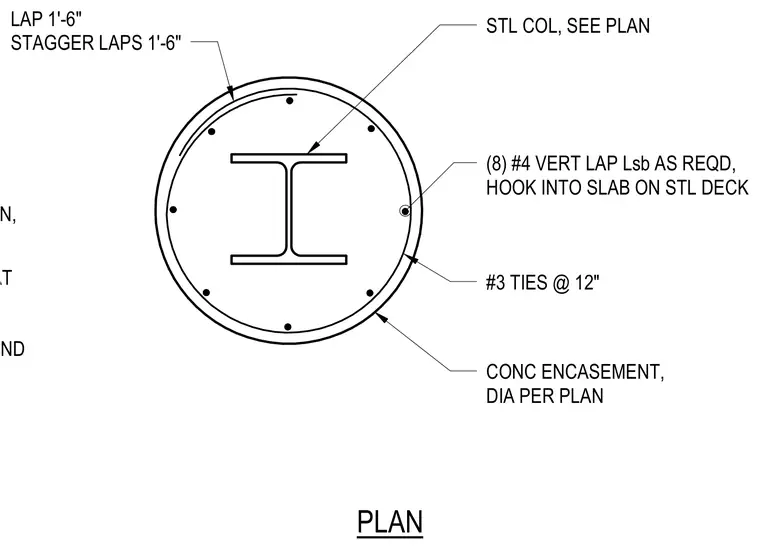

A structural steel column is encased in circular concrete with a diameter sized per plan. Eight number 4 vertical reinforcing bars are provided with required laps and hooked into the slab on steel deck. Number 3 ties are spaced at 12 inches on center around the perimeter. Vertical reinforcing laps are 1 foot 6 inches and staggered.
OCTAGONAL BASE PL THAT RADIUS, THICK PER PLAN. AT CONTR OPTION, A ROUND AT CONTRACTORS' OPTION, STL COL, SEE PLAN (8) #4 VERT LAP Lsb AS REQD, HOOK INTO SLAB ON STL DECK #3 TIES @ 12" CONC ENCASEMENT, DIA PER PLAN PLAN LAP 1'-6" STAGGER LAPS 1'-6"
