Continuous standard horizontal bridging consists of an angle section spanning between structural supports. Diagonal angle braces frame into gusset plates typically measuring one-quarter inch in thickness at the supports. The diagonal members are secured with a bolt at their intersection point.

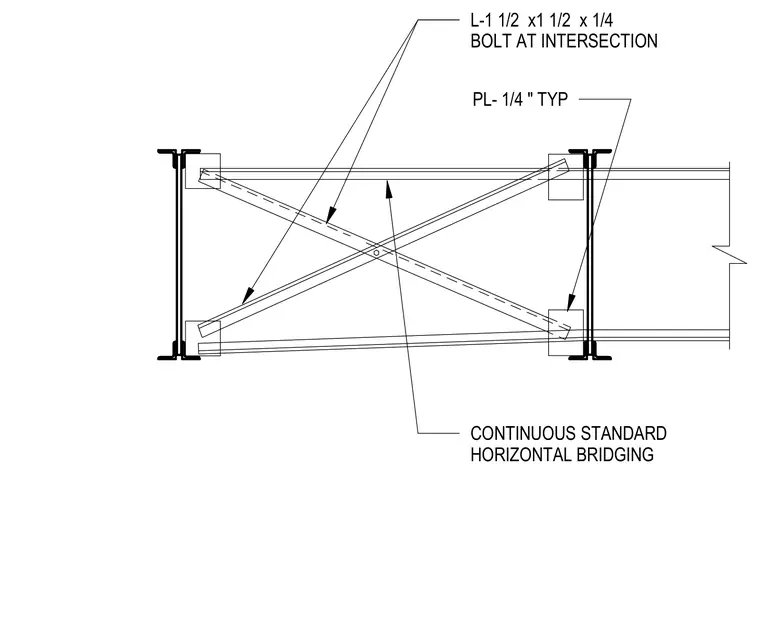

CONTINUOUS STANDARD HORIZONTAL BRIDGING L-1 1/2 x1 1/2 x 1/4 BOLT AT INTERSECTION PL- 1/4 " TYP
