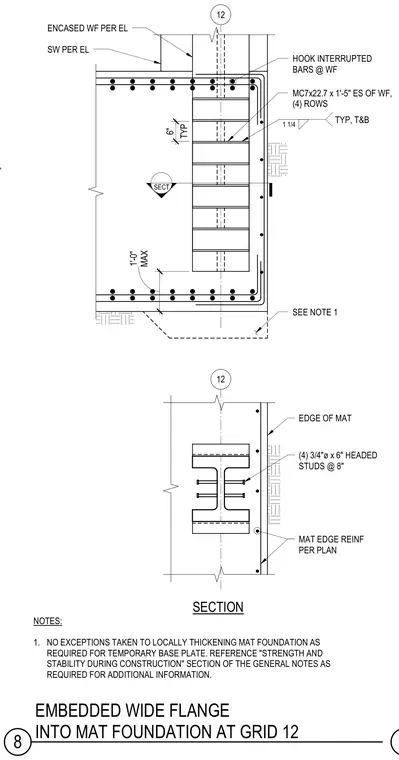

An encased wide flange steel column extends into a reinforced concrete mat foundation at grid 12. The embedded section features MC7x22.7 channels welded each side of the wide flange with four rows spaced at six inches typical, and a 1 1/4 inch fillet weld top and bottom. Four three-quarter inch diameter by six-inch headed studs are welded to the wide flange flanges at eight inches spacing. Mat foundation edge reinforcing is placed per plan, with interrupted reinforcing bars hooked around the wide flange. Notes permit locally thickening the mat foundation as required for a temporary base plate.
SECT MC7x22.7 x 5'-0" ES OF WF, MAX 1'-0" HOOK INTERRUPTED BARS @ WF ENCASED WF PER EL SW PER EL MC7x22.7 x 1'-5" ES OF WF, (4) ROWS TYP, T&B 1 1/4 NOTES: 1. NO EXCEPTIONS TAKEN TO LOCALLY THICKENING MAT FOUNDATION AS REQUIRED FOR TEMPORARY BASE PLATE. REFERENCE "STRENGTH AND STABILITY DURING CONSTRUCTION" SECTION OF THE GENERAL NOTES AS REQUIRED FOR ADDITIONAL INFORMATION. 12 SEE NOTE 1 12 EDGE OF MAT (4) 3/4"ø x 6" HEADED STUDS @ 8" MAT EDGE REINF PER PLAN SECTION TYP 6" 8 EMBEDDED WIDE FLANGE INTO MAT FOUNDATION AT GRID 12
