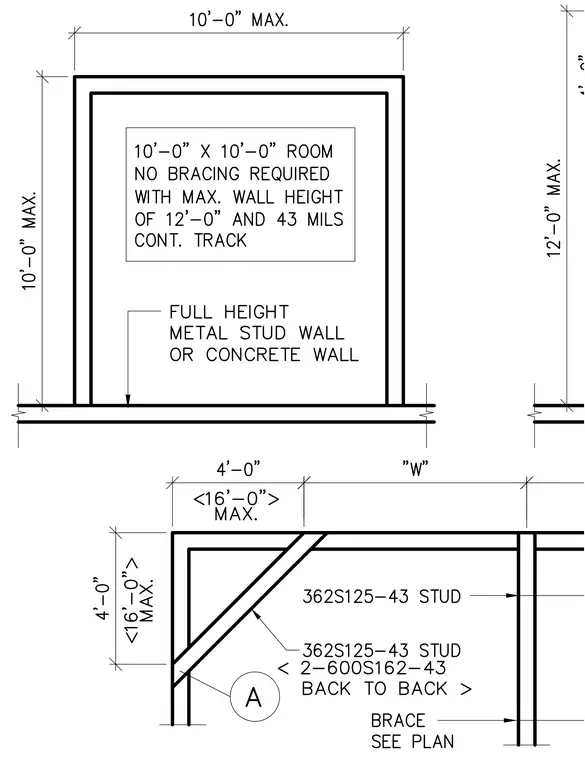

Metal stud ceiling framing details specify maximum spans of ten feet by ten feet with no bracing required for wall heights up to twelve feet and forty-three mils continuous track. Full-height metal stud walls or concrete walls provide support. Additional configurations feature 362S125-43 studs with diagonal bracing using 362S125-43 studs or two back-to-back 600S162-43 studs as detailed on plans.
