Wide Flange Beam to HSS Column Face Plate Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

HSS Connection Welded Connection Bolted Connection Timber / Mass-Timber Connection

About this detail

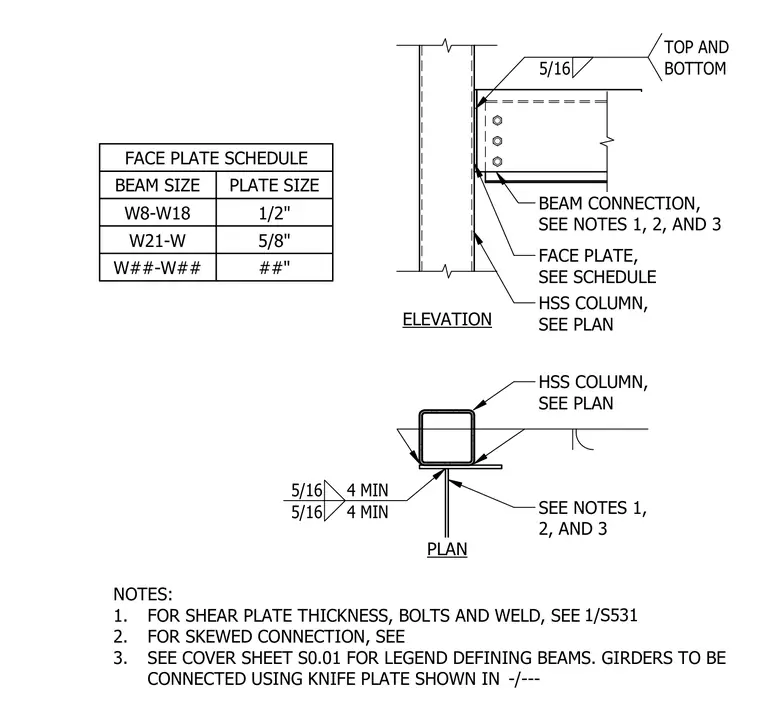

A wide flange beam connects to a hollow structural section column using a face plate welded to the column face and bolted to the beam web. Five-sixteenths inch fillet welds secure the top and bottom of the face plate to the HSS column. A face plate schedule specifies plate thicknesses ranging from one-half inch to five-eighths inch depending on the wide flange beam size. Three bolts attach the beam web to the connecting plate.
