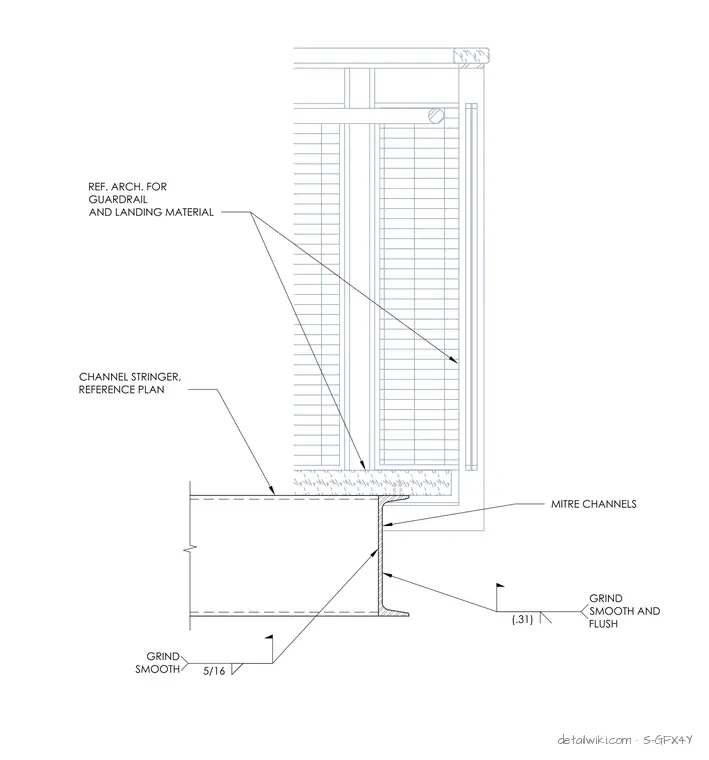

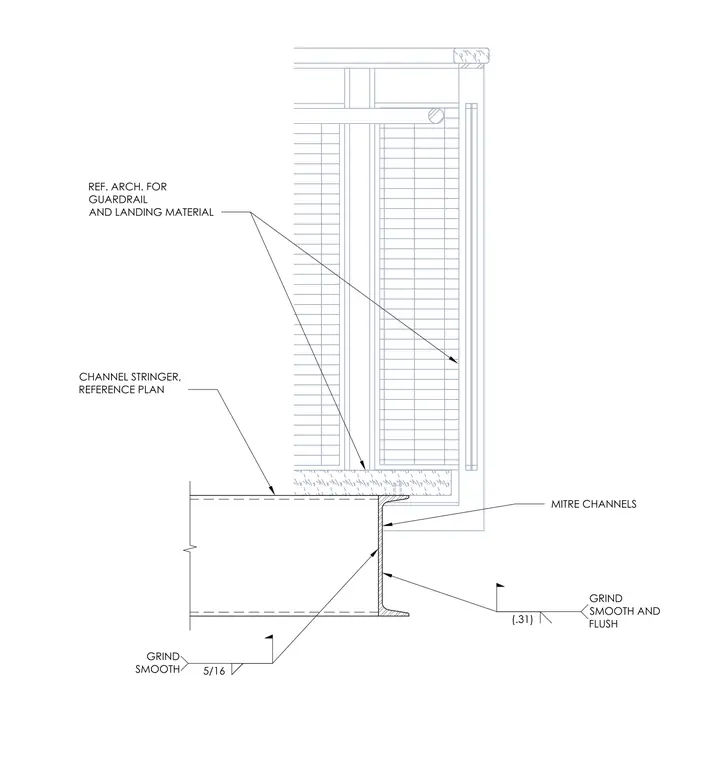

A mitered corner connection for a steel channel stringer supports a stair landing. The channel members are mitered at the corner and joined with a five-sixteenths-inch fillet weld, and all exterior welded surfaces are ground smooth and flush. Architectural drawings are referenced for the specific guardrail and landing material configuration. The channel stringer layout must be coordinated with the framing plan.
GRIND SMOOTH AND FLUSH (.31) GRIND SMOOTH 5/16 CHANNEL STRINGER, REFERENCE PLAN REF. ARCH. FOR GUARDRAIL AND LANDING MATERIAL MITRE CHANNELS
