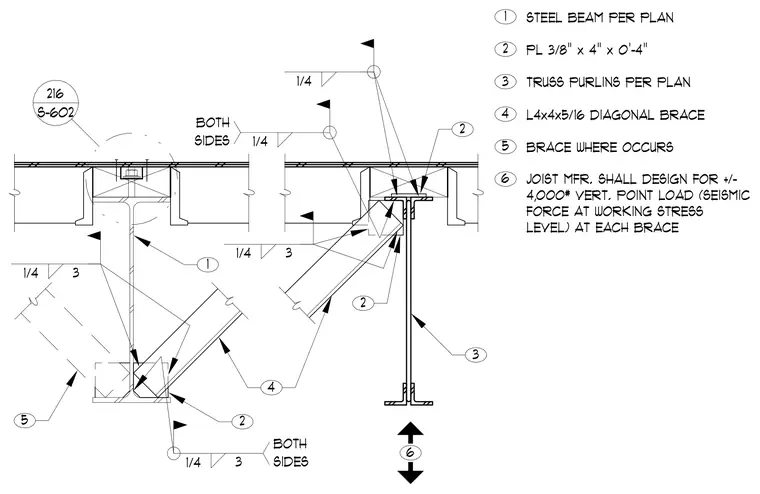

A diagonal brace constructed from an L4x4x5/16 angle connects to a steel beam and truss purlins sized per plan. Gusset plates measuring 3/8 inch by 4 inches by 0 feet 4 inches are welded with quarter-inch fillet welds on both sides to transfer loads. The joist manufacturer shall design the assembly for a plus or minus 4,000-pound vertical point load representing the seismic force at working stress level at each brace location.
216 S-602 STEEL BEAM PER PLAN PL 3/8" x 4" x 0'-4" TRUSS PURLINS PER PLAN L4x4x5/16 DIAGONAL BRACE 3 1/4 3 1/4 BOTH SIDES 1 3 1/4 1/4 BRACE WHERE OCCURS 5 4 2 1/4 BOTH SIDES 2 2 3 JOIST MFR. SHALL DESIGN FOR +/- 4,000# VERT. POINT LOAD (SEISMIC FORCE AT WORKING STRESS LEVEL) AT EACH BRACE 5 6 4 3 2 1 6
