Corner bars may be used in lieu of bent reinforcing bars for lap splices at concrete wall intersections. Tension lap splices are used per detail with standard hooks provided at corners.

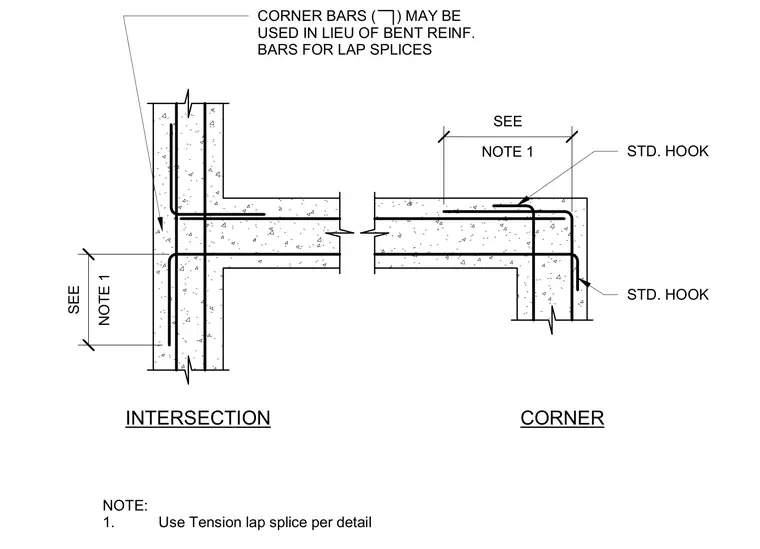

CORNER BARS ( ) MAY BE USED IN LIEU OF BENT REINF. BARS FOR LAP SPLICES NOTE 1 SEE NOTE 1 SEE STD. HOOK CORNER INTERSECTION NOTE: 1. Use Tension lap splice per detail STD. HOOK
