Structural · S-GFQEB

Heavy Structural Steel Chord Splice Connection

Connections

Bolted Connection Rebar Splice / Development

About this detail

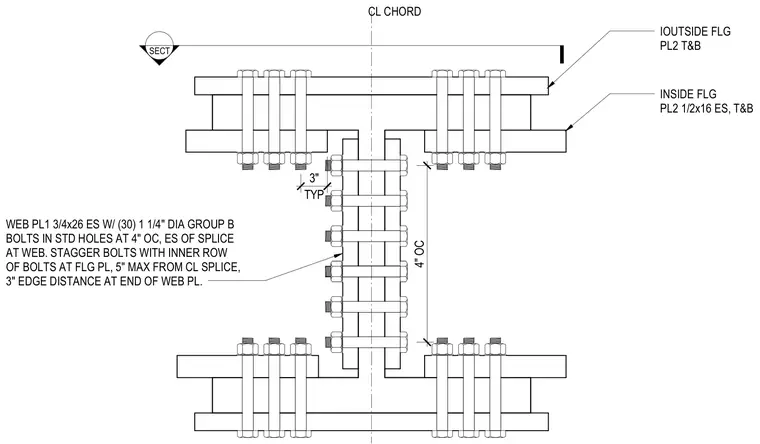

A heavy structural steel chord splice connection includes inside and outside flange plates top and bottom, along with a vertical web plate centered on the chord. The web plate measures 3/4 inch by 26 inches each side and is fastened with thirty 1-1/4 inch diameter Group B bolts in standard holes at 4 inches on center each side of the splice. Bolts are staggered with an inner row of bolts at the flange plate, maintaining a maximum distance of 5 inches from the center line of the splice and a 3 inch edge distance at the end of the web plate. The flange plates use inside plates measuring 2-1/2 by 16 inches each side top and bottom, paired with outside flange plates top and bottom.
