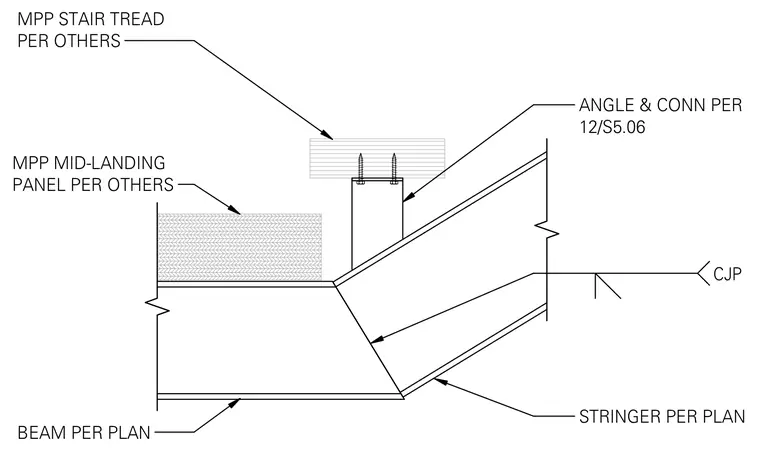

A structural steel stair stringer connects to a supporting beam sized per plan with a complete joint penetration weld. A mid-landing panel provided by others bears adjacent to the stringer connection. A framing angle and connection detail sized per sheet S5.06 supports a stair tread above the stringer.
BEAM PER PLAN MPP MID-LANDING PANEL PER OTHERS STRINGER PER PLAN MPP STAIR TREAD PER OTHERS ANGLE & CONN PER 12/S5.06 CJP
