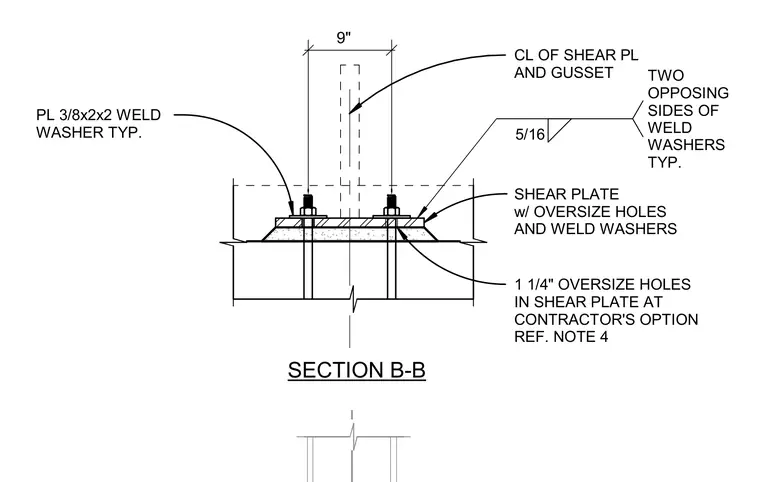

This connection assembly features a shear plate and gusset plate alignment with centerline dimensioning. The shear plate incorporates one-and-one-quarter-inch oversized holes at the contractor's option per reference notes. Three-eighths-by-two-by-two-inch weld washers are positioned typically over the plate. Five-sixteenths-inch fillet welds are specified on two opposing sides of the weld washers.
CL OF SHEAR PL AND GUSSET SHEAR PLATE w/ OVERSIZE HOLES AND WELD WASHERS SECTION B-B 9" 5/16 TWO OPPOSING SIDES OF WELD WASHERS TYP. PL 3/8x2x2 WELD WASHER TYP. 1 1/4" OVERSIZE HOLES IN SHEAR PLATE AT CONTRACTOR'S OPTION REF. NOTE 4
