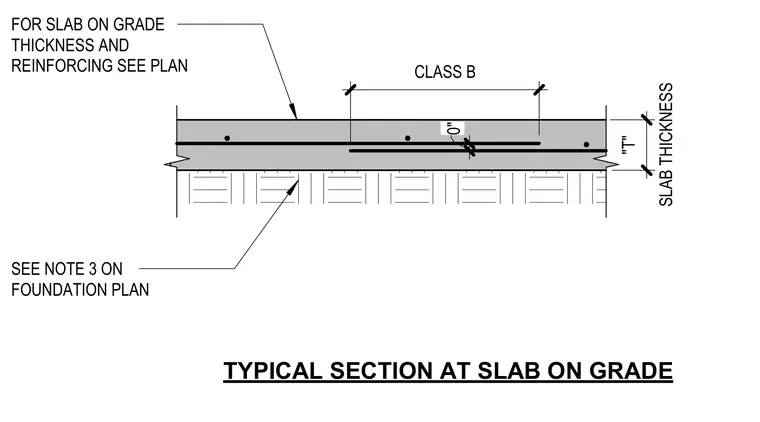

A typical section through a concrete slab on grade over a prepared subbase features a variable thickness designated as 'T' with reinforcing steel placed per the structural foundation plan notes. A Class B lap splice detail is indicated for the reinforcing bars within the slab. Subgrade conditions and requirements reference Note 3 on the foundation plan.
TYPICAL SECTION AT SLAB ON GRADE SEE NOTE 3 ON FOUNDATION PLAN FOR SLAB ON GRADE THICKNESS AND REINFORCING SEE PLAN CLASS B SLAB THICKNESS "T" 0"
