A structural steel column bears on a base plate secured to a concrete foundation by ASTM F1554 anchor rods fitted with double heavy hex nuts and plate washers. A shear key centered beneath the column transfers lateral loads into the concrete. Two inches of nominal non-shrink grout fills the space beneath the base plate, with blockouts provided as required and filled with non-shrink grout. Welded plate connections and complete joint penetration welds secure the structural elements according to the engineering design.

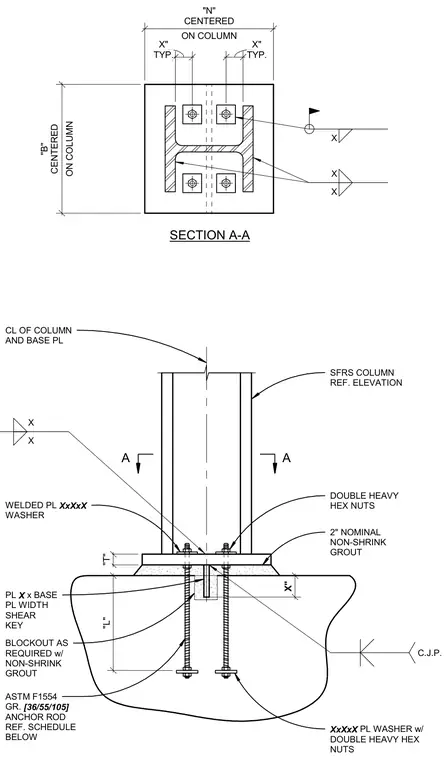

A A SECTION A-A SFRS COLUMN REF. ELEVATION DOUBLE HEAVY HEX NUTS 2" NOMINAL NON-SHRINK GROUT CL OF COLUMN AND BASE PL ASTM F1554 GR. [36/55/105] ANCHOR ROD REF. SCHEDULE BELOW ON COLUMN "N" CENTERED X X X ON COLUMN "B" CENTERED "T" "L" PL X x BASE PL WIDTH SHEAR KEY X X C.J.P. XxXxX PL WASHER w/ DOUBLE HEAVY HEX NUTS TYP. X" TYP. X" WELDED PL XxXxX WASHER BLOCKOUT AS REQUIRED w/ NON-SHRINK GROUT X"
