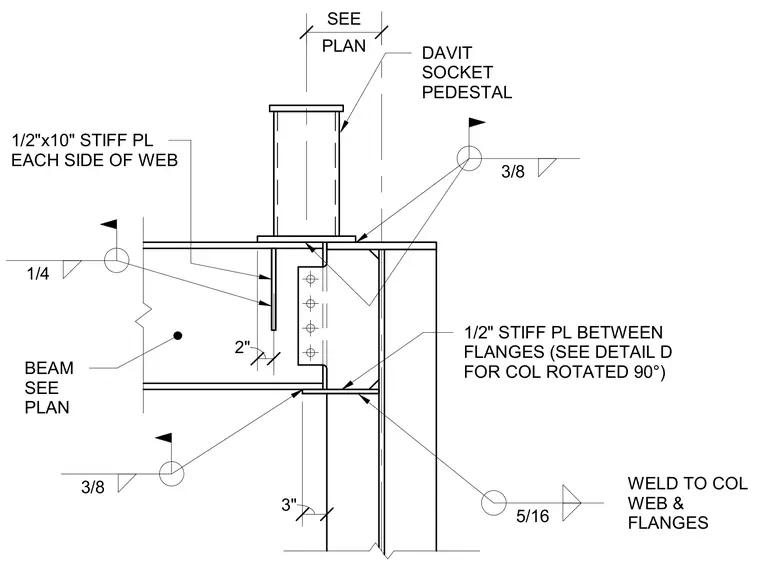

A davit socket pedestal is mounted atop a framing beam supported by a steel column, with its location sized per plan. Half-inch by ten-inch stiffener plates are welded to each side of the beam web. Half-inch stiffener plates are installed between the beam flanges, with a reference to detail D for a column rotated ninety degrees. Fillet welds of three-eighths inch and five-sixteenths inch secure the pedestal and stiffener plates to the column web and flanges.
1/2" STIFF PL BETWEEN FLANGES (SEE DETAIL D FOR COL ROTATED 90°) 1/2"x10" STIFF PL EACH SIDE OF WEB BEAM SEE PLAN DAVIT SOCKET PEDESTAL 2" 1/4 3/8 3" 5/16 WELD TO COL WEB & FLANGES 3/8 PLAN SEE
