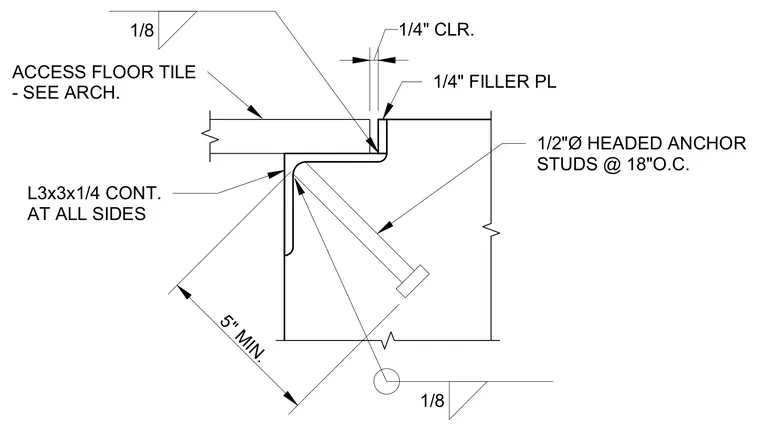

A continuous L3x3x1/4 structural angle frames the access floor tile edge with a quarter-inch clearance and a one-quarter-inch filler plate. The angle is secured to the concrete substrate using one-half-inch diameter headed anchor studs spaced at eighteen inches on center. One-eighth-inch fillet welds connect the angle assembly. The access floor tile is sized per architectural drawings.
1/2"Ø HEADED ANCHOR STUDS @ 18"O.C. 1/4" FILLER PL 1/4" CLR. ACCESS FLOOR TILE - SEE ARCH. L3x3x1/4 CONT. AT ALL SIDES 5" MIN. 1/8 1/8
