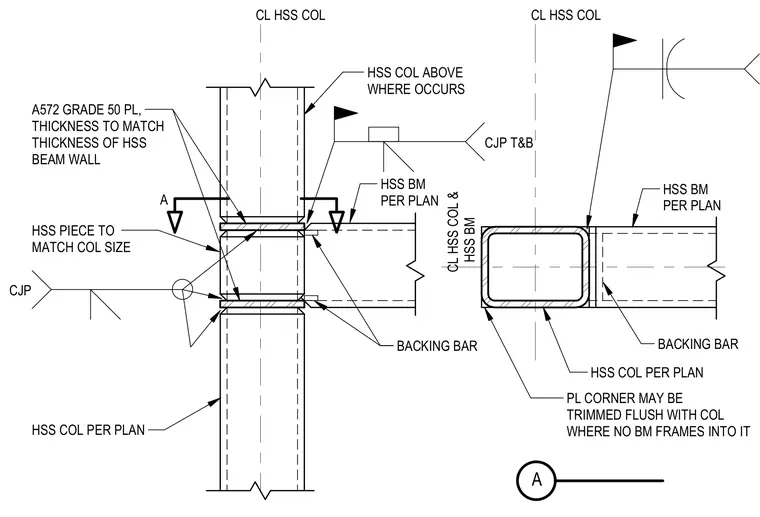

An HSS beam frames into an HSS column using an intermediate HSS piece matching the column size with an A572 Grade 50 plate whose thickness matches the HSS beam wall. Complete joint penetration welds tie the top and bottom of the assembly together with backing bars placed at the joints. The plate corners may be trimmed flush with the column where no beam frames into it.
CL HSS COL HSS COL PER PLAN CJP T&B A A572 GRADE 50 PL, THICKNESS TO MATCH THICKNESS OF HSS BEAM WALL CJP HSS BM PER PLAN CL HSS COL HSS COL PER PLAN CL HSS COL & HSS BM A BACKING BAR BACKING BAR PL CORNER MAY BE TRIMMED FLUSH WITH COL WHERE NO BM FRAMES INTO IT HSS COL ABOVE WHERE OCCURS HSS PIECE TO MATCH COL SIZE HSS BM PER PLAN
