Steel beams frame into a column support using a one-and-a-quarter-inch structural steel plate with a yield strength of fifty ksi, secured by eight three-quarter-inch diameter A307 erection bolts. Additional support is provided by a three-quarter-inch by fourteen-inch by one-foot-two-inch steel plate fastened with four three-quarter-inch diameter machine bolts. A five-sixteenths fillet weld is applied on three sides typically, along with a three-eighths weld. Wood nailers measuring six inches are placed across the top flange of the steel beams.

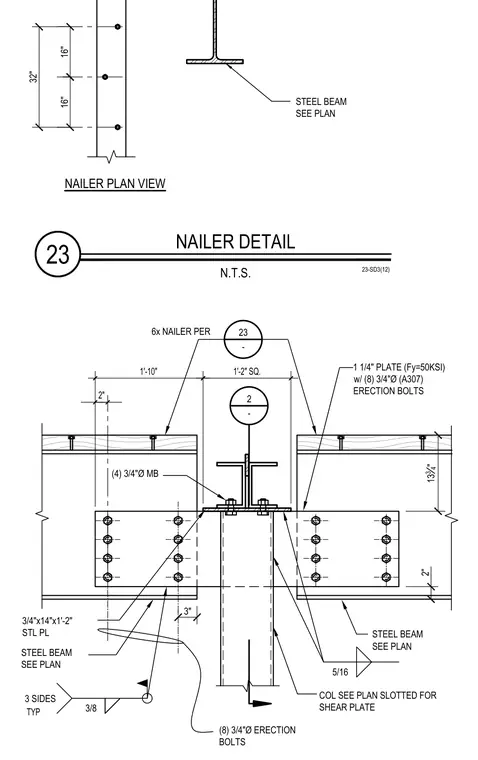

23 NAILER DETAIL N.T.S. 23-SD3(12) STEEL BEAM SEE PLAN 3/4"x14"x1'-2" STL PL (4) 3/4"Ø MB 2" 1'-10" 1'-2" SQ. 1 1/4" PLATE (Fy=50KSI) w/ (8) 3/4"Ø (A307) ERECTION BOLTS COL SEE PLAN SLOTTED FOR SHEAR PLATE 13 3 4 " 2" 2 - 5/16 3/8 3 SIDES TYP 6x NAILER PER 23 - 3" (8) 3/4"Ø ERECTION BOLTS STEEL BEAM SEE PLAN STEEL BEAM SEE PLAN 16" 16" 32" NAILER PLAN VIEW
