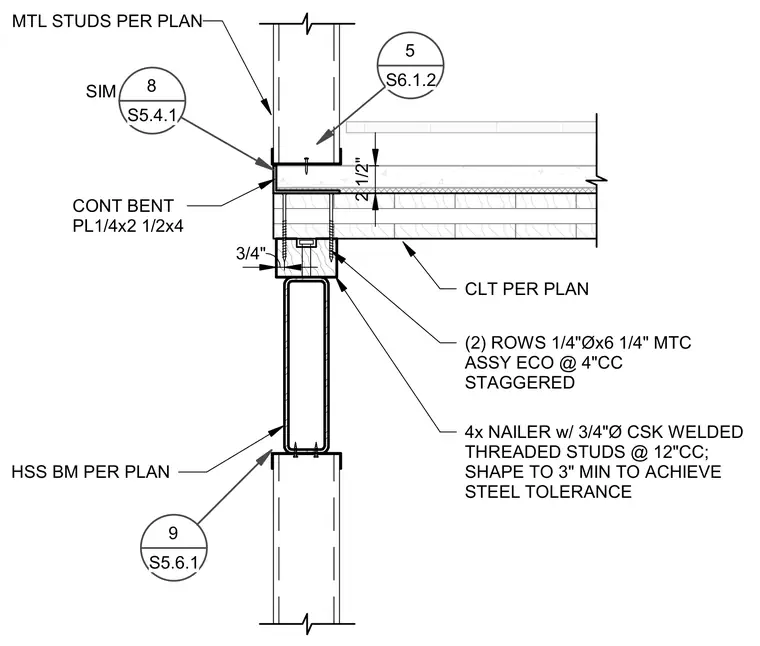

A cross-laminated timber deck bears onto a 4x wood nailer that sits atop a hollow structural section beam. The wood nailer is fastened with two rows of 1/4-inch diameter by 6-1/4-inch mechanical assemblies at 4 inches on center staggered, and includes 3/4-inch diameter countersunk welded threaded studs at 12 inches on center. A continuous bent plate measuring 1/4 inch by 2-1/2 inches by 4 inches ties the assembly together near the metal studs per plan.
MTL STUDS PER PLAN HSS BM PER PLAN 8 S5.4.1 CLT PER PLAN 5 S6.1.2 9 S5.6.1 4x NAILER w/ 3/4"Ø CSK WELDED THREADED STUDS @ 12"CC; SHAPE TO 3" MIN TO ACHIEVE STEEL TOLERANCE (2) ROWS 1/4"Øx6 1/4" MTC ASSY ECO @ 4"CC STAGGERED CONT BENT PL1/4x2 1/2x4 SIM 2 1/2" 3/4"
